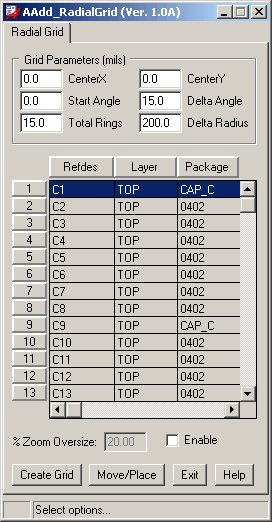

    CopperCAD's AAdd_RadialGrid Program Menu
AAdd RadialGrid

Creates a user defined Radial Grid which can then be
used to place components on any of the radial axies.


• Coponents can be place at any grid intersection, on the
   top or bottom (mirror) layer.

• All components are rotated relivie to the angle of
   the radial gird spoke.

• Saves time when designing circular DUT, Load
   or Probe ATE cards

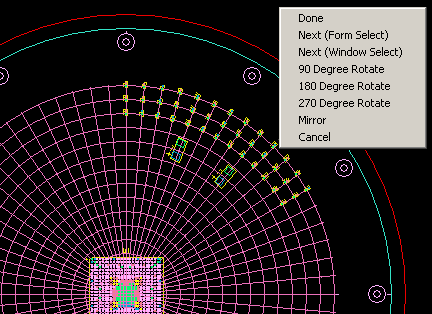

Radial Placement Grid dislayed in Allegro

     Use the right mouse button to rotate or mirror the device relative to the radial grid spoke.

Place multiple devices by selecting from the program menu or graphical user pick.



Questions concerning CopperCAD's SKILL Software for Cadence Allegro,
please contact our CopperCAD-Ware group.
