CopperCAD's AAdd_SymbolMarker Program Menu
AAdd_SymbolMarker

Automatically finds polarized components in
your design, then allows you to visit each one,
and add symbol markers when required.

• Finds all 2 pin diodes and capacitors with pin
   aliases attached -> Positive, Negative,
   Anode, Cathode, A, K etc...

• Finds all 2 pin, 3pin and other components
   by device type.

• Add symbol markers to any silkscreen or
   component assembly layers.

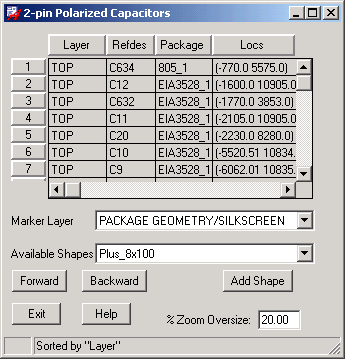

• Excel type device viewer allows easy
   navigation.

• Table re-sort allows non-polarized devices to
   be grouped easily.

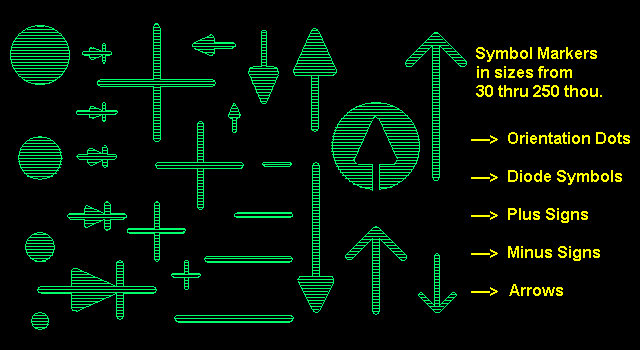

Available Marker Symbols.


Use the symbol viewer to visit symbols and add symbol markers if required.
