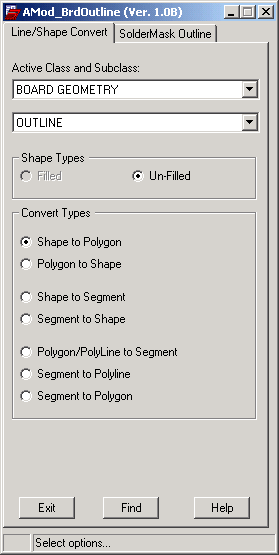

CopperCAD's AMod BrdOutline Program Menu
AMod BrdOutline

Converts shapes to polygons or individual
line segments and vice-versa, on any layer.
Can also generate soldermask outlines from
the board outline geometry.


• Edit complex shapes quickly and easily
   without a MCAD tool suite.

• Break up shapes or polygons into
   individual segments.

• Saves time. Make changes to the
   mechanical outlines yourself.

• Create shapes as filled or un-filled.

• Automatically finds board outline objects
   for soldermask generation.

• Use the board outline report to locate all
   objects quickly.



   Convert Shape to Segments.    Move or modify the segments.     Convert and Zcopy the Shape.
