AMod BrdTidy

Board Tidy cleans up "hard to find" duplicate,
dangling and floating objects in your design.


• New GUI allows the user to quickly locate
   and tidy hundreds of violation in just a few
   minutes.

• Automatically deletes dangling lines back to
   their source or completes the routing when
   inside the pad perimeter.

• Deletes Multiple vias at the same location,
   within a +/- 1 thou tolerance, leaving only the
   original via with the highest connectivity.

• Delete all floating (no netname), un-connected
   via's, tracks, shapes nets quickly and easily.






    Dangling Line Before     Dangling Line After     Duplicate Vias with +/- 1 thou offset

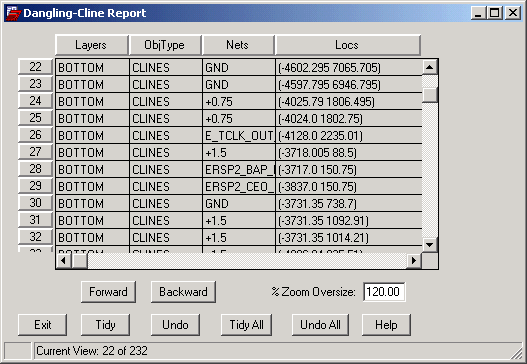

    New GUI allows the user to quickly navigate and fix violations.


Questions concerning CopperCAD's SKILL Software for Cadence Allegro,
please contact our CopperCAD-Ware group.
