CopperCAD's AMod ClineNeck Program Menu
AMod ClineNeck


Automates Cline Reduction at pins and vias
for Intel QuickPath interconnect, FBD2
DDR3 or PCI Express High-Speed Routing
in Cadence Allegro.


• The program will automatically reduce the
   cline width just before and after targeted
   pins and vias.

• Increases the trace impedance, compensating
   for the decrease in impedance caused by
   pin and via connections.

• Can target pins, vias or both, with the
   option to target mid-route vias.

• Can exclude fanout vias on a user defined
   list of devices where special routing should
   not be modified.

• Automatic and interactive modes.




    Before Cline Neck Down     After Cline Neck Down

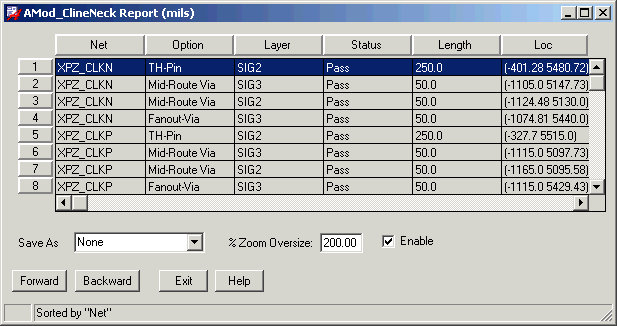

    Quickly review each cline reduction using the report window.
