AMod FlipSide

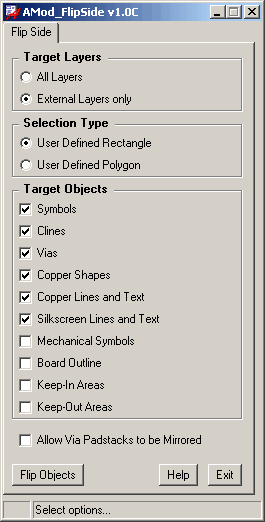

AMod FlipSide is used to flip placed components
and routing to the opposite side of the board.
Flip individual circuits or the entire board

• Flip (mirror) only outer layers or all the entire
   board stackup .

• Select individual circuits by rectangle or by
   complex polygon.

• Choose all objects or use the menu options
   target items selectivity.

• Saves time on major placement changes.

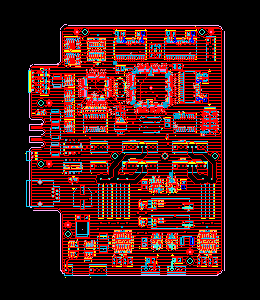

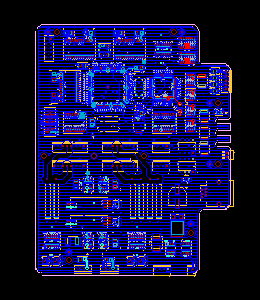

       Board Before Flipping Sides        Board After Flipping Sides

   Circuit Before Flipping Sides    Circuit After Flipping Sides
