AMod RRectPad


Automates the modification and creation of
rounded rectangular device padstacks, in
Cadence Allegro DRA (symbol) editor.


• The program will automatically create
   device padstacks with rounded corners
   based on existing padstacks or from
   user defined values.

• Creates user defined soldermask and
   pastemask pads in default or
   incremental sizes.

• Keep existing padstacks on internal
   layers, or use the Modify/New option
   to change the drill size, and use
   circular internal pads

• Use existing padstacks in the design
   as the source or search the library
   path for the target device pads.

• Automatic naming convention saves
   key strokes.

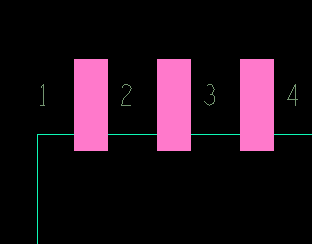

    Device with Square Pad Corners Before     Device with Rounded Pad Corners After
