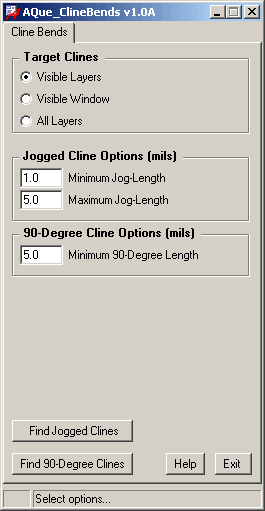

CopperCAD's AQue ClineBends Program Menu
AQue ClineBends

AQue ClineBends can locate and display cline
jogs and 90 degree cline bends.


• User defined Seach values help target the
   reults.

• Visit each cline bend or jog using the report
   viewer window.

• Quickly locate and elimite potential problems.











         Jogged Cline          Cline End Jog          90 Degree Bend

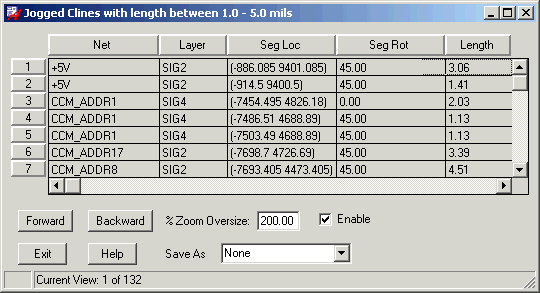

       Jogged Cline Report Window

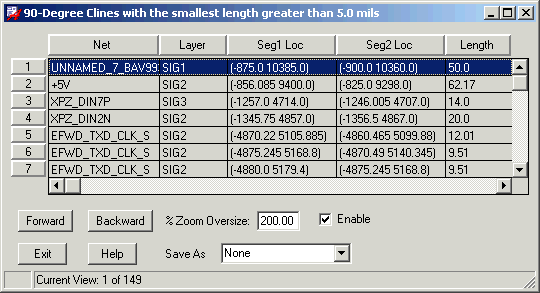

       90 Degree Bend Report Window


Questions concerning CopperCAD's SKILL Software for Cadence Allegro,
please contact our CopperCAD-Ware group.
