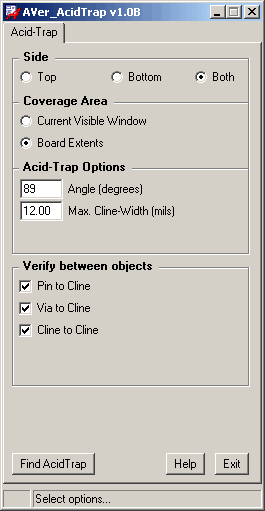

AVer AcidTrap

Finds and displays Acid Traps at the
intersection of pins, vias and clines on
the outer board layers.


• Locate potential over-etch problems
   before they occur.

• Improve your products long term
   reliability.

• Reduce your PCB manufacturing scrap
   rate.

• Checks your design before generating
   any Gerber files.

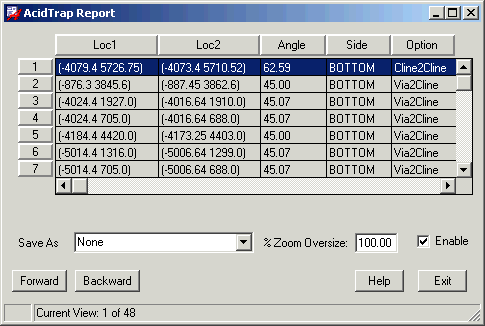

↓ ↓ Acid Trap Report Window. ↓ ↓


   Cline To Via Acid Trap.    Cline to Pad Acid Trap.

    Cline to Cline Acid Trap.
