CopperCAD's AVer SymbolLibrary Program Menu
AVer SymbolLibrary

Reports any differences between symbols
in the BRD file and the symbols stored
in the library path.


• Quickly determine if the library symbols
   have changed.

• Check just one symbol, or check them all
   with only one click.

• Detailed reports zero in on any differences.

• Symbol librarians can compare one symbol
   library to another symbol library.

• Compare any user defined custom layer to
   the symbol library.

• Works in both metric and imperial units of
   measure.

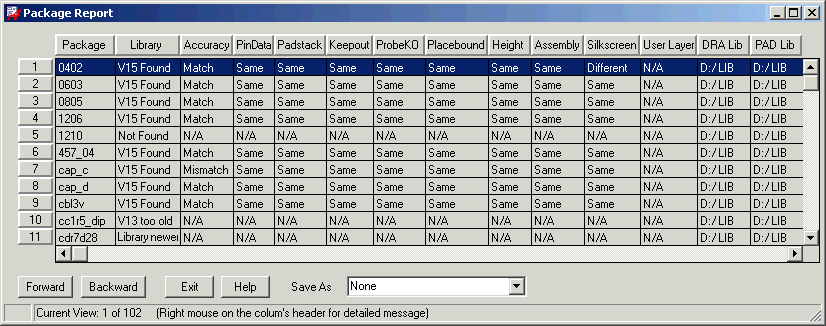

↓ ↓ Symbol Package Report Window. ↓ ↓

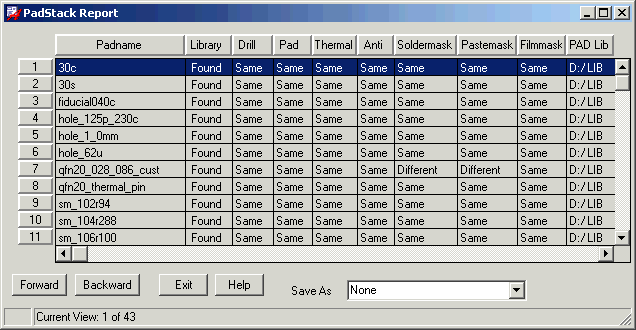

↓ ↓ Padstack Report Window. ↓ ↓



Questions concerning CopperCAD's SKILL Software for Cadence Allegro,
please contact our CopperCAD-Ware group.
